high pressure misting system diy

* Name: High pressure misting system DIY
* NO.: HH-HN-NPNSCT-22
* Thread: 10/24 UNC
* Operating Pressure: Over 20
* Spray Orifice: Stainless steel
* Orifice Size: 0.15mm-0.6mm
Product description

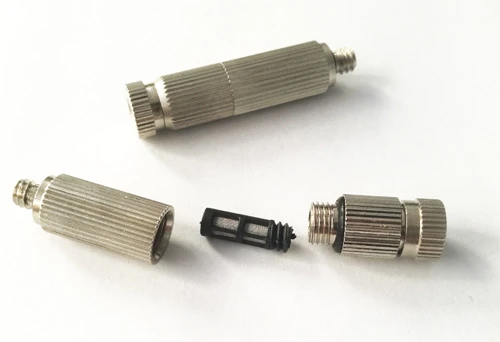

High pressure misting system DIY is made of nickel plated brass material, used in high pressure dust control system, humidification system, etc. It is a new designed type of fog nozzles that with anti drip system and new filter tube inside, the spray orifice could be ceramic, stainless steel or SS orifice. As for the SS orifice, customer could clean the filter tube by himself while the pp filter type have to be changed if get dirty.

High pressure misting system DIY has a more uniform orifice that produces a very fine mist. All of our high pressure misting system DIY are easy to disassemble and clean, which means they can provide years of service. Compared to conventional misting systems of the same application, high pressure misting systems use water more efficiently, using less than 90% of the water, with the same or better performance.

Features:

1. Very good cooling capacity.

2. Provides high quality fine mist with smaller droplets for faster evaporation.

3. Efficient, harmless, hardly causing any damage, requiring very little cleaning.

4. It is the easiest way to customize any garden spray project.

Specifications:

* Name: High pressure misting system DIY

* NO.: HH-HN-NPNSCT-22

* Thread: 10/24 UNC

* Operating Pressure: Over 20 bar

* Spray Orifice: Stainless steel

* Orifice Size(mm): 0.15-0.6

Flow Rate:

Orifice SizeFlow LPM

30 bar

435 psi

40 bar

580 psi

50 bar

725 psi

60 bar

970 psi

70 bar

1000 psi

80 bar

1160 psi

90 bar

1305 psi

100 bar

1450 psi

0.15mm0.0240.0380.0430.0470.050
0.0580.0640.068
0.20mm0.0410.0570.0630.0710.0750.0810.0850.091
0.30mm0.0700.0820.0910.1020.1050.1160.1220.132
0.40mm0.0940.1160.1280.1420.1500.1590.1690.185
0.50mm0.1170.1360.1600.1800.1900.1950.2090.228
0.60mm0.1350.1620.1800.1960.2100.2280.2410.255
