High Pressure Misting Nozzles

What is High Pressure Misting Nozzles?





High pressure misting nozzles are specialized nozzles designed to create a fine mist of water or other liquids at high pressure. They are commonly used in misting systems for various applications, such as outdoor cooling, dust suppression, humidification, and greenhouse irrigation.
High pressure misting nozzles are often used in conjunction with a high-pressure pump and a network of tubing or pipes to distribute the mist. The pump pressurizes the water, which is then delivered to the misting nozzles through the tubing. The misting system can be controlled using valves or timers to adjust the flow rate and duration of the mist.


Why Choose Us

Experience

We have been in the misting industry for over a decade, which has given us vast experience and knowledge in the production of top-quality misting systems. Our expertise ensures that our products meet the highest quality standards.

Quality

We use only the best materials and latest technology to manufacture our products, ensuring that they are long-lasting and efficient. Our products undergo rigorous quality checks during production to guarantee that they meet industry standards.

Service

We offer superb customer service and technical support. Our sales and technical team are always available to answer all your questions and concerns, offering guidance on product selection, installation, and maintenance.

Customization

We offer customization options to meet the specific needs of our clients. Our experienced engineers can work with customers to design and develop tailor-made misting systems to meet their unique requirements.



First 123 Last 1/3

The high pressure misting nozzles we offer including ​atomizing nozzle for courtyard, high pressure brass spray atomizing nozzle, high pressure fuel burner nozzle, high pressure brass mosquito spraying nozzle and more.
The most professional manufacturer and supplier of high pressure misting nozzles in China. Our factory applies the most advanced technology and equipment to produce quality and durable high pressure misting nozzles. With many quality high pressure misting nozzles for selling, we warmly welcome you to buy our products.
The high pressure misting nozzles are mainly made of brass or stainless steel, with stainless steel nozzle core and stainless steel guide vane, and contains anti-drip device. The liquid can flow at a high speed in the high pressure misting nozzle, forming a centrifugal vortex in the guiding vane, and ejecting extremely fine hollow mist particles from the nozzle of the high pressure misting nozzles.
The high pressure misting nozzles use the energy of the high-pressure airflow to atomize the high-viscosity liquid, and the high-pressure airflow energy is large, and the amount of the misting medium consumed by the high-pressure atomization is lower than that of the low-pressure atomization.
As a hydraulic single-fluid misting nozzle, the high pressure misting nozzles are composed of an internal or external chemical filter, a core, a plunger and a microporous nozzle. The introduction of advanced technology, the high pressure misting nozzles have a subtle fog, it has the advantages of sufficient atomization, low cost, good effect, and no nozzle blockage.
Features:
1. The amount of humidification and the spray effect can be effectively adjusted.
2. The streamlined design reduces nozzle downtime and simplifies cleaning.
3. The length of the spray head, the area of ​​the spray, the type and spacing of the nozzles can be set.
4. Well-made, can effectively improve product quality and production efficiency.
5. The stainless steel part of the nozzle is treated by advanced forging process and has strong durability.
Application:
Paper, textile, automobile manufacturing, food processing, engineering machinery, chemical, agricultural and other industries.


Advantages of High Pressure Misting Nozzles

01/

Small Droplet Size

High pressure misting nozzles are designed to produce very small droplets, typically in the range of 50 to 100 microns in diameter. These tiny droplets remain suspended in the air longer, creating a more consistent and efficient misting effect.

02/

High Efficiency

The small droplets produced by high pressure misting nozzles result in higher efficiency when used for applications such as cooling and humidification. The mist is able to more effectively evaporate, leading to greater cooling or humidification performance.

03/

Wide Range of Applications

High pressure misting nozzles can be used in a variety of settings, including industrial cooling, agricultural crop irrigation, pest control, and even in consumer products like humidifiers and personal misting fans.

04/

Robust Construction

These nozzles are typically made of durable materials such as stainless steel or brass, which can withstand high pressure and harsh environments, making them suitable for outdoor use and industrial applications.

05/

Adjustability

Many high pressure misting nozzles allow for adjustment of the spray pattern, flow rate, and pressure, providing flexibility to customize the misting effect for specific applications.

06/

Easy Installation and Maintenance

High pressure misting nozzles are often compact and lightweight, which makes them easy to install and maintain. Regular cleaning and inspection can help ensure optimal performance.

07/

Energy Efficiency

Compared to other cooling or humidification methods that rely on mechanical refrigeration or electric heating elements, high pressure misting nozzles offer a more energy-efficient solution, as they rely on the natural process of evaporation for cooling or humidification.

08/

Environmentally Friendly

The use of water for misting is generally considered environmentally friendly, especially when sourced from a sustainable supply. However, it's important to ensure that the water is clean and free from impurities to prevent nozzle clogging and maintain performance.

09/

Versatility

High pressure misting nozzles can be used in both stationary and mobile applications. They can be integrated into fixed systems like cooling towers or HVAC units, or used in portable misting fans and other mobile devices.

10/

Cost-Effective

High pressure misting nozzles can be a cost-effective solution for cooling or humidification, particularly in situations where traditional methods are not feasible or are too expensive to install and operate.

What is the principle of high pressure misting nozzle?


Liquid Supply

The nozzle is connected to a pressurized liquid supply, usually water, but sometimes other liquids such as oil or chemicals. The liquid is delivered to the nozzle through a pipe or hose.

productcate-180-120
productcate-180-120

High Pressure

The liquid is subjected to high pressure, typically between 200 and 1000 psi (pounds per square inch), depending on the nozzle design and the desired droplet size.

Nozzle Design

The nozzle has a specialized design that includes tiny orifices or channels through which the high pressure liquid is forced. The shape and size of these openings, as well as the geometry of the nozzle itself, are carefully engineered to produce the desired misting effect.

productcate-180-120
productcate-180-120

Mist Generation

The high pressure and specialized nozzle design result in a mist of very small droplets, typically in the range of 50 to 100 microns (0.05 to 0.1 millimeter) in diameter. These droplets are so small that they remain suspended in the air for a longer period than larger droplets, creating a visible mist.

Atomization and Velocity

As the liquid exits the nozzle, it is rapidly accelerated to high velocities. The combination of high pressure and high velocity causes the liquid to break up into tiny droplets or mist.

productcate-180-120
productcate-180-120

Cooling or Humidification

High pressure misting nozzles are often used for cooling and humidification purposes. The misting effect can reduce temperatures by providing evaporative cooling, or it can increase the humidity in a space.

Material of High Pressure Misting Nozzles


Stainless Steel: Stainless steel is a popular material for high pressure misting nozzles due to its strength, corrosion resistance, and durability. It is suitable for harsh environments and industrial applications where the nozzles may be exposed to corrosive chemicals or high pressure.



Brass: Brass is another material often used for high pressure misting nozzles. It offers good corrosion resistance, machinability, and durability. Brass nozzles are often chosen for their cost-effectiveness and suitability for a wide range of applications.



Plastic: Certain high pressure misting nozzles can be made from plastic materials, such as polypropylene or PVDF (polyvinylidene fluoride). These materials are lighter in weight and can be more cost-effective, but may not offer the same level of durability and pressure resistance as stainless steel or brass.



Aluminum: Aluminum is sometimes used for high pressure misting nozzles due to its light weight and corrosion resistance. However, it may not be suitable for all applications, especially those involving high pressure or extreme temperature conditions.



Other Metals: Depending on the specific requirements of the application, other metals such as bronze, copper, or nickel alloys may be used to manufacture high pressure misting nozzles. These materials can offer unique properties, such as increased resistance to specific types of corrosion or high-temperature environments.

Application of High Pressure Misting Nozzles





productcate-470-408

Outdoor Cooling

High pressure misting systems are often used in outdoor spaces like patios, restaurants, amusement parks, and sports stadiums to create a cooling effect. The fine mist evaporates quickly, reducing the ambient temperature and providing relief from heat.

Dust and Odor Control

High pressure misting systems are effective in controlling dust and odors in industrial settings, construction sites, waste management facilities, and livestock farms. The mist captures and suppresses dust particles, preventing them from becoming airborne. It also helps in neutralizing and reducing unpleasant odors.

Greenhouses and Horticulture

High pressure misting systems are used in greenhouses and nurseries to maintain optimal humidity levels and provide a cooling effect for plants. The mist helps in preventing dehydration and heat stress, promoting healthy growth and reducing plant diseases.

Special Effects and Entertainment

High pressure misting systems are utilized in theme parks, theaters, and entertainment venues to create special effects like fog, mist curtains, and artificial rain. These effects enhance the visual experience and add an element of excitement to performances and events.

Fire Suppression

High pressure misting systems can be used for fire suppression in specific applications. The fine mist generated by the nozzles helps in cooling and suppressing flames, reducing the spread of fire and minimizing damage.

Industrial Processes

High pressure misting systems are employed in various industrial processes, such as cooling hot machinery, controlling static electricity, and humidifying environments. They are also used in metalworking, lubrication, and cleaning applications.

Agricultural and Livestock Cooling

High pressure misting systems are used in agricultural settings to cool livestock, poultry, and dairy animals. The mist helps in reducing heat stress and improving animal welfare, resulting in increased productivity.

Process of High Pressure Misting Nozzles

Liquid Supply

The high pressure misting system starts with a pressurized liquid supply. This liquid is typically water, but it can be other fluids depending on the application. The liquid is delivered to the nozzle through a pipe or hose.


High Pressure Pump

The liquid is pressurized by a high pressure pump, which can generate pressure ranging from 200 to 1000 psi (pounds per square inch) or more, depending on the nozzle design and the desired droplet size.


Nozzle Atomization

The pressurized liquid is then channeled through a specialized nozzle. The nozzle's design includes small orifices or channels through which the liquid is forced. The high pressure and specialized design of the nozzle cause the liquid to break up into tiny droplets.


Atomization and Velocity

As the liquid exits the nozzle, it is accelerated to high velocities. The combination of high pressure and high velocity causes the liquid to atomize into a mist of tiny droplets.


Mist Generation

The high pressure and specialized nozzle design result in a mist of very small droplets, typically in the range of 50 to 100 microns in diameter. These droplets are so small that they remain suspended in the air for a longer period than larger droplets, creating a visible mist.


Cooling or Humidification

The misting effect can be used for cooling and humidification purposes. The mist is able to more effectively evaporate, leading to greater cooling or humidification performance.


Maintenance and Cleaning

Regular maintenance and cleaning of the nozzles are important to prevent clogging and maintain optimal performance. This can involve flushing the system with water to remove any impurities or accumulated debris.



Components of High Pressure Misting Nozzles

Nozzle Body

The nozzle body is the main component of the system that houses the other components. It is typically made of brass, stainless steel, or plastic and is designed to withstand high pressure.

Orifice

The orifice is a small opening in the nozzle body that controls the flow of water or air. The size of the orifice determines the flow rate and the size of the droplets produced.

Filter

The filter is a small mesh screen that is placed inside the nozzle body to prevent debris and particles from clogging the orifice. It is typically made of stainless steel or nylon.

Anti-Drip Valve

The anti-drip valve is a small spring-loaded valve that prevents water from dripping out of the nozzle when the system is turned off. It is typically made of brass or stainless steel.

O-Ring

The O-ring is a small rubber ring that is placed around the nozzle body to create a seal between the nozzle and the system. It prevents leaks and ensures that the system operates efficiently.

High Pressure Tubing

The high pressure tubing is a flexible hose that connects the nozzle to the high pressure pump. It is typically made of nylon or polyurethane and is designed to withstand high pressure.

High Pressure Pump

The high pressure pump is the heart of the system that generates the pressure required to produce the fine mist. It is typically a piston or diaphragm pump that is powered by an electric motor.

Pressure Regulator

The pressure regulator is a device that controls the pressure of the water or air entering the system. It ensures that the pressure remains constant and within the desired range.

Control System

The control system is a set of electronic components that regulate the operation of the system. It includes a timer, pressure switch, and solenoid valve that control the flow of water or air to the nozzle.

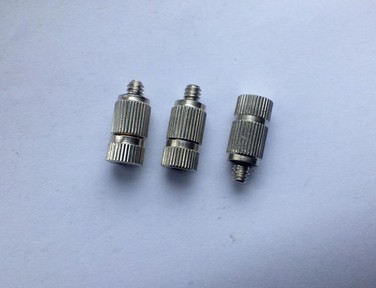

How to Maintain High Pressure Misting Nozzles
productcate-376-282
productcate-376-282
productcate-376-282
productcate-376-282

Regular Cleaning: Clean the nozzles with a soft brush and mild detergent to remove any dirt, dust, or other contaminants that may have accumulated on the nozzle surface. Rinse the nozzles thoroughly with clean water to remove any remaining detergent residue.



Inspection: Visually inspect the nozzles for any signs of clogging, damage, or deformation. Check for any blockages or leaks in the nozzle orifices, which can be caused by mineral deposits, scale buildup, or other materials.



De-Clogging: If the nozzles are clogged, use a cleaning solution designed for the specific type of nozzle. Follow the manufacturer's instructions for proper use and concentration. Flush the nozzles with water to remove the cleaning solution and any dislodged debris.



Lubrication: Apply a small amount of lubricant designed for the type of nozzle to the moving parts of the nozzles to prevent corrosion and ensure smooth operation.



Adjustments: Check the spray pattern and adjust the nozzle if necessary to ensure uniform coverage and appropriate misting droplet size.



Replacement: If the nozzles are damaged or worn beyond repair, replace them with new ones to maintain the performance and efficiency of the misting system.



Regular Checks: Establish a regular maintenance schedule to check the nozzles and the entire misting system for any potential issues before they become significant problems.



Storage: If the misting system is not in use for an extended period, properly store the nozzles to prevent corrosion and damage.



Documentation: Keep records of the maintenance performed, parts replaced, and any issues encountered for future reference.



Professional Help: If you are unsure about the maintenance procedures or if the nozzles need specialized care, consult the manufacturer or hire a professional to perform the maintenance.


Our Factory
productcate-626-468

As a professional manufacturer of misting/fog nozzle, our company has engaged in this area since 2005. Before 2005, we specialize in producing chemical fiber spinneret and hollow spinneret over 15 years, with the purpose of dedicating to the eco-environment, our company begin to adjust the direction of produts, which make our main energy in misting/fog nozzles, accessories and humidification system develop. Now over years developing, our company has owned a complete products system of misting/fog nozzle manufacturing and already approved ISO 9001 system.


FAQ

Q: What are high pressure misting nozzles used for?

A: High pressure misting nozzles are used for producing a fine mist of water droplets from a pressurized water source. They are commonly used in applications such as cooling systems, evaporative cooling of industrial machinery, agricultural irrigation, pest control, and humidification in greenhouses and other enclosed spaces.

Q: How do high pressure misting nozzles work?

A: High pressure misting nozzles work by forcing water through a small orifice at high pressure. This causes the water to break up into tiny droplets that form a mist. The nozzle design and water pressure determine the droplet size and the amount of mist produced.

Q: What are the different types of high pressure misting nozzles?

A: There are several types of high pressure misting nozzles, including:
- Flat fan nozzles: These produce a wide, flat spray pattern that can cover a large area.
- Full cone nozzles: These create a circular spray pattern that envelopes an object or space.
- Hollow cone nozzles: These produce a hollow circular spray pattern, which is useful for applications where the water needs to flow through the spray.
- Drip nozzles: These are designed to minimize misting and instead produce a dripping or draining effect.

Q: What is the optimal water pressure for high pressure misting nozzles?

A: The optimal water pressure for high pressure misting nozzles depends on the type of nozzle and the desired spray pattern and droplet size. Typically, the pressure range for these nozzles is between 30 and 100 psi (pounds per square inch). It's important to consult the manufacturer's specifications for the specific nozzle model.

Q: How do I clean high pressure misting nozzles?

A: To clean high pressure misting nozzles:
- Turn off the water supply to the nozzles.
- Disconnect the nozzles from the water supply line if possible.
- Use a soft brush and mild detergent to clean the nozzle face and orifice.
- Rinse the nozzles thoroughly with clean water to remove any remaining detergent residue.
- Reconnect the nozzles to the water supply and test the spray pattern to ensure proper functioning.

Q: How often should I maintain my high pressure misting nozzles?

A: The frequency of maintenance for high pressure misting nozzles depends on the usage and environmental conditions. In dusty or dirty environments, they may need cleaning more often. It's recommended to perform routine inspections and cleanings at least every three to six months or as needed.

Q: How far apart should misting nozzles be?

A: 2 - 3ft apart
Misting nozzles should be spaced 2 - 3ft apart. Our stainless steel piping is pre-cut to 2ft while plastic tubing comes in spools and can be cut to any length. Misting lines can either follow the shape of the cooled space (installed at the perimeter) or it can also be brought inside the space.

Q: Where can I buy high pressure misting nozzles?

A: You can buy high pressure misting nozzles from industrial supply stores, online retailers, or directly from manufacturers. It's important to verify the compatibility of the nozzles with your specific application and water pressure requirements before purchasing.

Q: Are there any safety precautions I should follow when using high pressure misting nozzles?

A: Yes, when using high pressure misting nozzles, it's important to follow proper safety protocols, including:
- Wearing appropriate personal protective equipment (PPE), such as gloves, safety glasses, and a face shield, when handling or cleaning the nozzles.
- Ensuring that the water supply system is properly plumbed and secured to prevent leaks or pressure buildup.
- Regularly inspecting the system for any leaks or signs of damage.
- Turning off the water supply and draining the system before performing maintenance or repairs on the nozzles.
- Keeping the area around the misting nozzles clear of obstacles and tripping hazards.

Q: How do I clean and maintain high pressure misting nozzles?

A: Regular cleaning and maintenance are important to ensure the proper functioning of high pressure misting nozzles. They should be periodically inspected for clogs or debris and cleaned using appropriate cleaning solutions or tools.

Q: How do misting nozzles work?

A: Small orifice misting nozzles operate by forcing fluid through a very small orifice. The sheering forces break the fluid into fine droplets. Impingement misting nozzles operate impacting the fluid on a pin just underneath the exit orifice. This breaks the liquid into very fine droplets.

Q: How do you fix a misting nozzle?

A: How to Clean and Fix a Clogged Misting Nozzle. If your misting nozzle is clogged, you want to remove the nozzle from off the misting system. If the deposits are not caked and attached tightly to the metal surface, you can tap the nozzle on the hard surface gently and then rinse out the buildup debris using clean water.

Q: What is the best misting nozzle size?

A: Orifice size regulates misting nozzle water capacity and ultimate size of water droplets exiting the nozzle. For moderate and/or humid climates, orifice in 0.1m to 0.15mm size is recommended. For very dry and hot climates 0.2mm misting nozzles can be used. Orifice comes in ceramic and stainless steel materials.

Q: What are high pressure misting nozzles?

A: High pressure misting nozzles are specialized nozzles designed to create a fine mist of water or other liquids at high pressure. They are commonly used in misting systems for various applications such as outdoor cooling, dust suppression, and humidification.

Q: How do high pressure misting nozzles work?

A: High pressure misting nozzles work by forcing pressurized water or liquid through small orifices, creating a high-velocity spray of tiny droplets. The high pressure helps to break the liquid into fine particles, resulting in a mist that quickly evaporates into the surrounding air.

Q: What is the advantage of using high pressure misting nozzles?

A: High pressure misting nozzles provide several advantages, including the ability to create a finer mist, faster evaporation, and better coverage compared to low-pressure misting systems. They are also more effective in cooling outdoor spaces and reducing dust.

Q: What materials are high pressure misting nozzles made of?

A: High pressure misting nozzles are typically made of materials that can withstand the high pressure, such as stainless steel or brass. These materials are durable and resistant to corrosion.

Q: What is the recommended pressure range for high pressure misting nozzles?

A: The recommended pressure range for high pressure misting nozzles can vary depending on the specific product and application. However, they typically operate within a range of 800 to 1200 PSI (pounds per square inch).

Q: Can high pressure misting nozzles be adjusted for different spray patterns?

A: Yes, many high pressure misting nozzles are adjustable and can be customized for different spray patterns. They may have adjustable heads or interchangeable inserts to change the spray angle or pattern.

We're well-known as one of the leading high pressure misting nozzles manufacturers and suppliers in China. We warmly wlecome you to buy high quality high pressure misting nozzles for sale here from our factory. For more information, contact us now.
