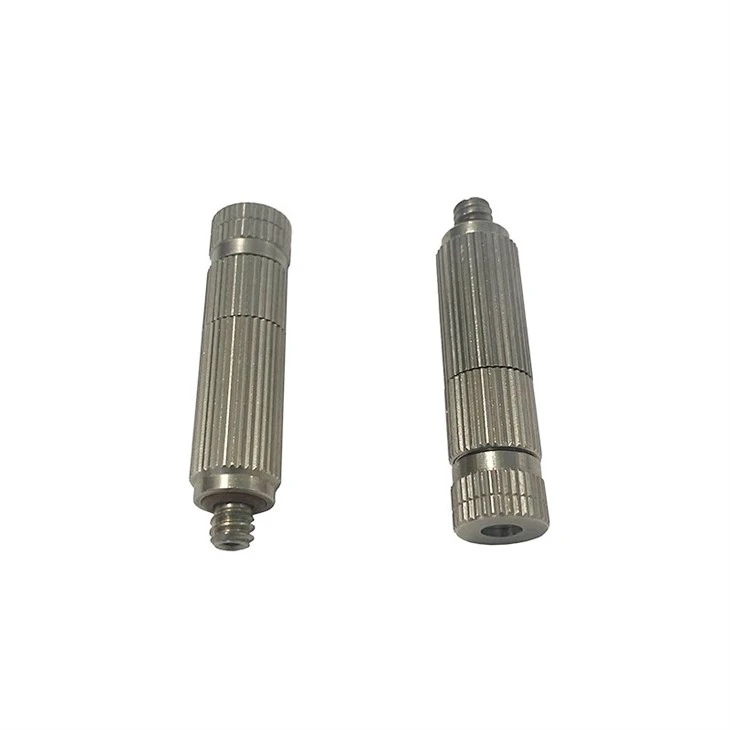

Stainless Steel Misting Nozzle With Filter Screen

Product Description

Specifications:
Product Name: Stainless steel misiting nozzle with filter screen
Thread size: 10/24UNC, 3/16 (customizable thread)
Nozzle material: stainless steel
Orifice size: 0.1mm,0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm,0.7mm,0.8mm
Working pressure: 20-100 bar,Equipped with anti drip function

HAIHANG MISTING stainless steel fine atomizing nozzle | special nozzle for high-pressure micro fog
HAIHANG MISTING stainless steel fine atomizing nozzle is the core spray accessory of high-pressure micro fog system, which is specially developed and manufactured for high-pressure humidification, landscape fog making, industrial dust removal, cooling and dust suppression, disinfection and disinfection and sterilization and other working conditions. This high-pressure atomizing nozzle is made of high-quality stainless steel, supports a maximum working pressure of 120bar, and can produce tens of microns of ultra-fine particles. The atomizing effect is fine and even. It is the core nozzle selected in the high frequency of high-pressure spray equipment. It is widely exported with various high-pressure spray hosts and spray pipeline systems.

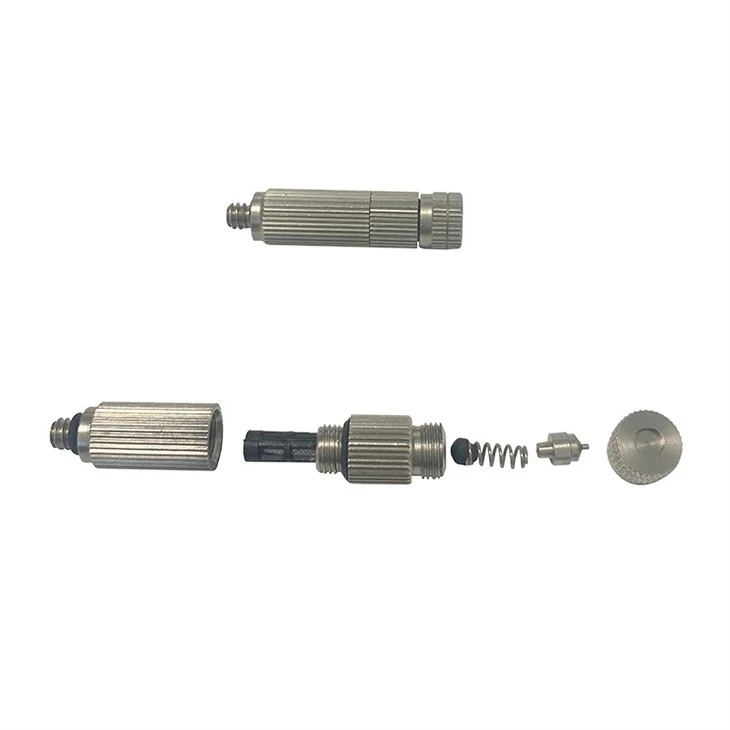

This fine misting nozzle has multiple hard core product features. The nozzle thread interface is equipped with a sealed O-ring, which does not require wrapping with raw material tape during installation. It can be directly threaded to achieve reliable sealing. Installation is simple and efficient, greatly reducing equipment assembly and on-site replacement and maintenance time. The all stainless steel body is resistant to rust and chemical corrosion, with high mechanical strength and durable pressure resistance. It can stably withstand high pressure of 120 bar and is not easily cracked or deformed during long-term high-pressure operation. It is suitable for long-term continuous operation of high-pressure micro fogging machines. Internally integrated with precision filter element, spring, and collision needle components, with built-in anti drip function, there will be no dripping or flowing water problems after shutdown; The internal precision flow channel structure outputs mist particles of only a few tens of microns under standard working pressure, with fine and light water mist, no standing water on the ground, and will not wet the ground and materials, achieving a true dry mist effect.
In practical application scenarios, this stainless steel fine atomizing nozzle has a wide range of adaptability. In the industrial field, it can be used for high-voltage humidification in textile workshops, electronic factories, and printing plants, effectively controlling environmental humidity and eliminating static electricity; It can also be used for dust control in mines, sand and gravel factories, and workshops, with ultra-fine water mist adsorbing and settling suspended dust. In terms of environmental fogging, it is used for landscaping fogging, rockery fogging, outdoor plaza cooling, creating a misty atmosphere, and achieving environmental cooling. In the field of people's livelihood disinfection and sterilization, high-pressure spray equipment can be used for space disinfection and sterilization and epidemic prevention spray; It can also be used in various scenarios such as greenhouse humidification, farm cooling and disinfection. Whether it is bulk procurement by complete equipment manufacturers or on-site renovation and replacement of old nozzles in engineering projects, this nozzle can match the needs well.
Compared with ordinary brass nozzles and plastic atomizing nozzles, HNA spray stainless steel fine atomizing nozzles have higher pressure resistance rating, up to 120bar, stronger acid and alkali corrosion resistance, and are not easy to rust and block; The O-ring sealing structure is easy to install, with stable sealing and less leakage; The built-in filter can filter impurities in water, reduce the probability of nozzle blockage, and lower the frequency of maintenance in the later stage. The dozens of microns of ultra-fine fog particles are fully atomized, and the water mist diffusion effect is good, improving the working efficiency of the entire spray system.
HNA spray focuses on the production of spray nozzles and spray system accessories. Each stainless steel fine spray nozzle has been tested under high-pressure working conditions to strictly control the processing accuracy and ensure the consistency of atomization. If you are looking for high-pressure micro fog nozzles, landscape fogging nozzles, industrial humidification atomization nozzles, and dust suppression fine atomization nozzles, this product is a cost-effective choice that can adapt to the vast majority of imported and domestic high-pressure micro fog hosts, support bulk supply, and meet various procurement needs of equipment manufacturers and engineers
