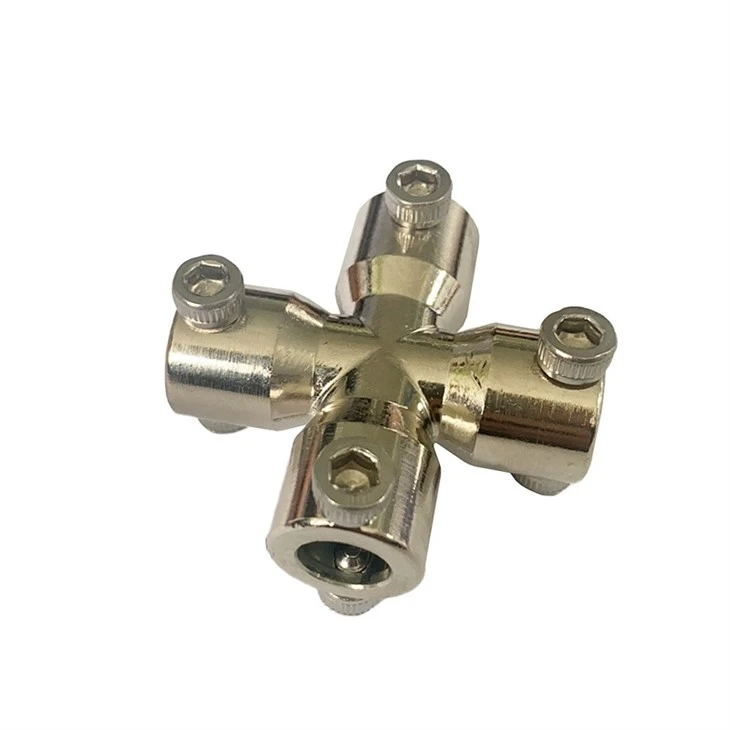

Brass Four-way Connector Screw Fixation

This four-way cross four-way screw locking joint is a diversion fitting specially made by HAIHANG MISTING  for large-scale high-pressure atomization pipeline layout. The main body is made of thickened brass, and the surface is polished and rust proof with nickel plating. The overall texture is compact without sand holes and air holes, and the mechanical structure strength is sufficient. It is suitable for landscape fog making, site enclosure spraying, large area cooling of the plant, mine yard dust removal, greenhouse humidification, municipal disinfection and sterilization and other engineering scenarios that require simultaneous deployment of multiple pipelines. It can realize the uniform distribution of single water inlet into four independent pipelines, greatly simplify the pipeline layout at complex points, and reduce the use of pipes for on-site construction. The overall pressure performance of the product is outstanding, and it can stably adapt to the working conditions of 5-10MPa conventional high-pressure atomization system. It is not easy to deform or leak in the face of instantaneous water pressure impact caused by equipment start and stop. It has outstanding resistance to water vapor and corrosion, and can be used for a long time in outdoor scenic spots, high humidity greenhouses, and breeding farms with slight chemical corrosion. It is not easy to rust or oxidize, effectively prolongs the replacement cycle of accessories, and reduces the maintenance cost of equipment in the later stage.
All four ports of the joint are compatible with 3/8 specification stainless steel high-pressure pipes, and each port is equipped with double hexagonal locking screws, paired with built-in anti slip compression washers. Installation and disassembly can be completed using a regular hexagonal wrench, without the need for professional heavy tools. A single person can independently complete the pipeline layout operation, greatly improving the construction efficiency of the project site. Compared with traditional welding and winding thread diversion accessories, the disassembly and assembly difficulty is lower, and it is also more convenient to clean the pipeline scale and replace the atomizing nozzle during disassembly and maintenance in the later stage. After tightening the locking screws on both sides, the gasket can evenly wrap around the stainless steel pipe wall, forming multiple layers of sealing protection, firmly locking the pipe wall to prevent high-pressure water flow from leaking and releasing through the gaps, ensuring balanced pressure output of the four pipelines, and avoiding weak atomization and intermittent atomization at remote points, keeping the atomization effect of all nozzles consistent.
The cross shaped flow channel inside the joint is finely polished and polished, with smooth inner walls and no burrs or protrusions. The pressure loss when water flows through is extremely low, and there will be no throttling or pressure reduction. At the same time, the smooth inner wall is not easy to adhere to impurities such as sediment and scale, which can reduce the probability of pipeline blockage and reduce the frequency of fault shutdown. The four-way integrated molding structure has no splicing gaps, and there is no leakage hazard caused by multi component splicing, making the overall stability stronger. The standardized 3/8 pipe has strong universality and can be freely combined with the same series of elbows, straight connections, and external wire joints to meet various project needs such as the construction of new foggy projects and the expansion and renovation of old dust removal spray systems. Whether it is purchased in batches by engineers, matched with the whole machine by environmental protection equipment manufacturers, or purchased sporadically by small spray projects, this brass cross four-way joint can meet the use needs of multi way flow distribution. With the advantages of solid brass materials, convenient screw locking installation, balanced four way flow distribution, high pressure resistant sealing stability, etc., it has become the preferred accessory for large area high-pressure spray pipeline flow distribution, providing reliable support for the long-term stable operation of the entire high-pressure spray system.

Specifications:
* Product Name: Brass Four-way Connector Screw Fixation
* Size: 9.52mm(3/8")
* Recommend connecting 9.52mm (3/8) stainless steel pipe
